The differential is a crucial component in any vehicle’s drivetrain system. Whether you drive a front-wheel-drive, rear-wheel-drive, or all-wheel-drive vehicle, the differential plays a vital role in ensuring smooth and efficient power delivery to the wheels. Despite its importance, many drivers rarely consider the differential until it malfunctions. When issues arise, understanding differential repair becomes essential to maintaining vehicle performance, safety, and longevity.
This article dives deep into the world of differentials, their function, common problems, diagnosis, repair techniques, and maintenance tips. Whether you are a DIY enthusiast or an automotive professional, this comprehensive guide will give you a solid foundation in differential repair.
What is a Differential?
A differential is a gear assembly located between the wheels on the drive axle (rear or front, depending on the drivetrain). Its primary function is to allow the wheels to rotate at different speeds while distributing engine torque to them. This capability is essential when a vehicle turns because the outer wheel travels a longer distance than the inner wheel. Without a differential, the wheels would have to spin at the same speed, causing excessive tire wear, poor handling, and drivetrain stress.
Types of Differentials
-
Open Differential: The most common type found in passenger vehicles, it allows wheels to rotate at different speeds but can send power to the wheel with the least traction.
-
Limited Slip Differential (LSD): Improves traction by limiting the difference in wheel speed, allowing better power transfer when one wheel slips.
-
Locking Differential: Can be manually or automatically locked to force both wheels on an axle to rotate at the same speed, ideal for off-road conditions.
-
Torque Vectoring Differential: Advanced differentials that actively control torque distribution to improve handling and stability.
Differential Components
Understanding the main components of a differential is vital before diving into repair:
-
Ring Gear: A large gear connected to the drive shaft that transmits power.
-
Pinion Gear: Mates with the ring gear to transfer rotational force.
-
Side Gears: Connected to the axle shafts, they allow wheel speed variation.
-
Spider Gears: Smaller gears that mesh with side gears to facilitate differential action.
-
Carrier Housing: Holds all the gears in place.
-
Bearings and Seals: Support the gears and prevent lubricant leakage.
-
Differential Fluid: Lubricates the gears and dissipates heat.
Common Differential Problems
Differentials are designed to last a long time but can develop problems over years of use or abuse. Common issues include:
1. Noisy Differential
Whining, grinding, or clunking noises often indicate worn gears or bearings. This can be due to improper lubrication, contamination, or mechanical wear.
2. Leaking Differential Fluid
Seals or gaskets can fail over time, leading to fluid leaks. Low fluid levels cause increased friction and heat, resulting in accelerated wear or catastrophic failure.
3. Overheating
If the differential overheats, usually due to low fluid or heavy loads, it can damage internal components.
4. Vibration or Shuddering
Worn or damaged differential components or misaligned axles can cause vibrations.
5. Poor Traction or Wheel Spin
A failing limited-slip differential or locking differential may cause traction problems, especially on slippery surfaces.
6. Difficulty Turning or Handling Issues
If the differential isn’t working properly, turning can become difficult or produce unusual handling characteristics.
Diagnosing Differential Issues
Proper diagnosis is the first step toward effective differential repair. Here are some key diagnostic methods:
-
Listen for Unusual Noises: Use a mechanic’s stethoscope or simply drive the vehicle carefully to detect whines, clunks, or grinding sounds.
-
Check for Leaks: Inspect the differential housing, axle seals, and drain plugs for fluid leaks.
-
Inspect Fluid Condition: Differential fluid should be clean and have the proper level. Dark, metallic, or burnt-smelling fluid indicates problems.
-
Check for Play: Lift the vehicle and manually check for excessive play or looseness in the axle shafts or carrier bearings.
-
Test Drive: Observe for vibrations, noises, or handling issues during acceleration, deceleration, and turning.
-
Scan for Codes: Some modern vehicles with electronically controlled differentials will store diagnostic trouble codes.
Differential Repair Procedures
The scope of differential repair varies from simple fluid changes to complete overhaul or replacement. Below are detailed procedures for common repairs.

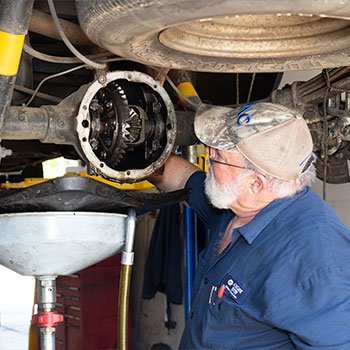

1. Differential Fluid Change
Regular fluid changes can prevent many differential problems.
Procedure:
-
Raise and safely support the vehicle.
-
Remove the differential cover bolts or drain plug to drain old fluid.
-
Clean the mating surfaces and remove the old gasket or sealant.
-
Inspect the fluid for metal shavings or debris.
-
Replace the gasket or apply new sealant.
-
Reinstall the cover or drain plug.
-
Fill the differential with the recommended fluid type and quantity.
-
Lower the vehicle and test drive.
2. Seal Replacement
Leaking seals are a common source of differential fluid loss.
Procedure:
-
Identify leaking seals (pinion seal, axle seals, or cover gasket).
-
Remove the components necessary to access the seal.
-
Carefully remove the old seal, avoiding damage to the shaft or housing.
-
Clean the area and install a new seal using appropriate tools.
-
Reassemble components and refill fluid if needed.
3. Bearing Replacement
Worn or damaged bearings cause noise and vibration.
Procedure:
-
Remove the differential assembly from the vehicle.
-
Remove the differential cover and drain fluid.
-
Use bearing pullers or press to remove worn bearings.
-
Inspect races and other components for damage.
-
Install new bearings and races with proper tools and lubricants.
-
Reassemble and adjust bearing preload or backlash as per specifications.
4. Gear Replacement and Adjustment
Worn or damaged ring and pinion gears require careful repair or replacement.
Procedure:
-
Remove the differential carrier from the axle housing.
-
Mark the gear positions before disassembly.
-
Remove the ring gear and pinion gear.
-
Inspect for wear, cracks, or damage.
-
Replace with new gears, ensuring proper matching.
-
Reinstall with careful adjustment of gear backlash and pinion depth using shims or adjusters.
-
Use gear marking compound to check contact patterns.
-
Adjust until the pattern is correct.
-
Reassemble, refill fluid, and test drive.
5. Complete Differential Overhaul or Replacement
In cases of severe damage, a full rebuild or replacement may be necessary.
Procedure:
-
Remove the differential assembly from the vehicle.
-
Disassemble and inspect every component.
-
Replace all worn or damaged parts.
-
Reassemble with proper torque specifications and adjustments.
-
Alternatively, install a rebuilt or new differential assembly.
-
Refill fluid and perform road test.
Tools and Equipment for Differential Repair
-
Floor jack and jack stands
-
Socket and wrench sets
-
Torque wrench
-
Bearing pullers and presses
-
Dial indicator and magnetic base for backlash measurement
-
Gear marking compound
-
Seal drivers and installers
-
Drain pan and fluid pump
-
Safety glasses and gloves
Differential Maintenance Tips
Proper maintenance can extend the life of your differential and prevent costly repairs.
-
Regular Fluid Changes: Follow manufacturer recommendations, typically every 30,000 to 60,000 miles.
-
Use Correct Fluid: Use only the specified type and viscosity.
-
Inspect for Leaks: Regularly check seals and gaskets.
-
Monitor Noise and Vibration: Address symptoms early.
-
Avoid Overloading: Excessive loads or towing can stress the differential.
-
Drive Smoothly: Aggressive driving increases wear.
-
Check Limited-Slip Additives: Use special additives if required for LSD differentials.
When to Seek Professional Help
Differential repair can be complex and requires precision. If you notice persistent noise, leaks, vibration, or handling issues and are not confident in your mechanical skills, consult a professional mechanic. Specialized tools and knowledge are essential for gear setup and bearing adjustments.
Conclusion
The differential is an often overlooked but critical part of your vehicle’s drivetrain. Understanding its function and common problems helps you maintain optimal performance and safety. Timely differential repair—ranging from fluid changes and seal replacements to complete overhauls—can prevent costly damage and prolong vehicle life.
By following recommended maintenance schedules and addressing symptoms early, you can enjoy smoother rides, better traction, and improved vehicle control for years to come.
