Parking brakes play a critical role in vehicle safety, especially when your car is stationary on inclines or uneven surfaces. Despite being less frequently used than the foot brake, the parking brake system requires regular inspection and maintenance, particularly adjustment, to ensure it functions properly when needed. This article explores the importance of parking brake adjustment services, how the parking brake system works, signs it needs adjustment, the adjustment process itself, and tips for maintaining it.
What Is a Parking Brake?
The parking brake, also known as the emergency brake, handbrake, or e-brake, is a mechanical braking system designed to keep a vehicle stationary when parked. Unlike the hydraulic foot brake system that relies on brake fluid, the parking brake typically uses a cable mechanism to engage the rear brakes directly. This independent system provides an additional layer of safety to prevent the vehicle from rolling away.
Why Is Parking Brake Adjustment Important?
Over time, the parking brake components can stretch, wear out, or become misaligned, reducing their effectiveness. If the parking brake is not adjusted correctly, it may:
-
Fail to hold the vehicle stationary on an incline.
-
Require excessive force or travel on the lever or pedal.
-
Cause uneven wear on brake components.
-
Lead to unsafe situations or parking-related accidents.
A properly adjusted parking brake ensures that the brakes engage firmly and securely without excessive effort and that the vehicle remains immobilized when parked.
How the Parking Brake System Works
Understanding the basic working mechanism of the parking brake helps to appreciate why adjustment is essential.
Typical Components:
-
Parking Brake Lever or Pedal: The user interface inside the vehicle, often a hand lever between the front seats or a foot pedal.
-
Parking Brake Cable: A steel cable that connects the lever or pedal to the braking mechanism on the rear wheels.
-
Brake Shoes or Pads: Some vehicles use drum brakes on the rear wheels which rely on brake shoes, while others use disc brakes with a dedicated parking brake caliper.
-
Adjusters and Linkages: Mechanical parts that transfer the cable tension to the brake mechanism.
Operation:
When the parking brake lever is pulled or the pedal pressed, it tightens the cable, which then applies the brake shoes or pads against the drum or rotor. This mechanical force locks the rear wheels in place. Over time, the cable can stretch or the components can wear, reducing this clamping force.
Signs Your Parking Brake Needs Adjustment
Knowing when to seek parking brake adjustment services can prevent bigger problems down the line. Here are some common signs indicating an adjustment is due:
1. Excessive Lever or Pedal Travel
If you notice that the parking brake lever pulls up too far or the pedal presses down too much before it engages, the cable may have stretched and needs tightening.
2. Vehicle Rolls on an Incline
If your car moves or rolls even when the parking brake is engaged, it means the brake is not holding correctly, signaling poor tension or worn components.
3. Parking Brake Warning Light
Some vehicles have a dashboard light that comes on if the parking brake is not engaged properly or if there is a system malfunction.
4. Uneven Brake Wear
If the rear brakes show signs of uneven wear, it could be caused by improper parking brake tension or adjustment.
5. Noise or Dragging
You might hear unusual noises such as grinding or feel the vehicle dragging even when the parking brake is released, indicating a need for inspection and adjustment.
When to Get Parking Brake Adjustment Services
Generally, parking brake adjustment should be part of your routine vehicle maintenance, such as during brake inspections or tune-ups. Most automotive experts recommend:
-
Checking the parking brake every 12,000 to 15,000 miles.
-
Adjusting the parking brake if signs of malfunction appear.
-
Immediately inspecting after replacing brake components such as shoes, pads, or rotors.
How Is Parking Brake Adjustment Performed?
The parking brake adjustment process varies slightly depending on whether your vehicle has drum brakes or disc brakes at the rear. Professional mechanics follow a series of steps to ensure proper tension and function.
Tools Needed:
-
Jack and jack stands (to lift the vehicle safely)
-
Wheel chocks
-
Wrenches and pliers
-
Screwdriver or brake adjuster tool
-
Parking brake adjustment kit (if applicable)
Step-by-Step Adjustment for Drum Brake Parking Brakes:
-
Lift and Secure the Vehicle
The rear wheels must be off the ground to allow free wheel rotation during adjustment. Use a jack and jack stands and place wheel chocks on the front wheels.
-
Remove the Rear Wheels
This step is sometimes optional but gives better access to the brake drum and components.
-
Locate the Parking Brake Cable and Adjuster

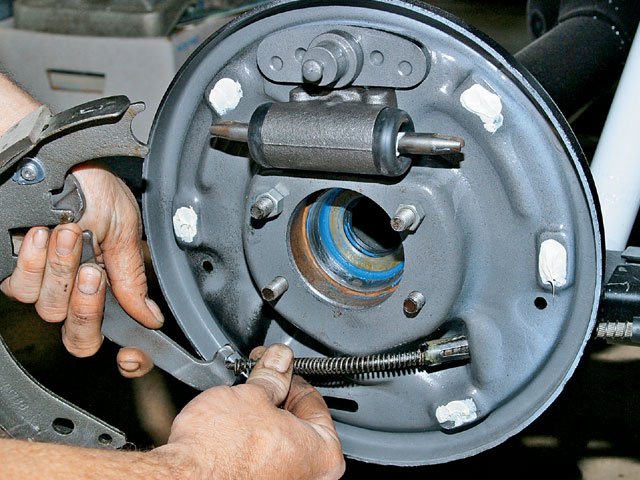

On drum brakes, the parking brake cable connects to a lever inside the drum assembly.
-
Adjust the Brake Shoes
There is typically an adjuster star wheel that can be turned to expand the brake shoes closer to the drum. Turning it tightens the brakes, reducing the lever travel.
-
Check Cable Tension
The cable itself may have an adjustable nut near the lever or under the vehicle. Tighten or loosen this nut to get proper cable tension.
-
Test the Parking Brake Lever
Pull the lever and check the tension and travel distance. The lever should engage firmly between 3-7 clicks (depending on manufacturer specs).
-
Reassemble and Lower the Vehicle
Put the wheels back on, lower the car, and perform a final parking brake test on an incline.
Adjustment Process for Disc Brake Parking Brakes:
For vehicles with rear disc brakes, the parking brake may be integrated into the caliper or have a separate drum-in-hat brake system.
-
Lift the Rear of the Vehicle
Secure the car on jack stands.
-
Access the Rear Brake Caliper or Drum-in-Hat
You may need to remove the rear wheels.
-
Adjust the Parking Brake Mechanism
Many modern disc brakes use a screw mechanism inside the caliper that pushes the brake pads outward when the parking brake is applied. This often requires a special tool to rotate the screw back or forward for adjustment.
-
Adjust the Parking Brake Cable
As with drum brakes, the cable tension is adjustable via a nut near the lever or under the vehicle.
-
Test and Readjust
Check for proper parking brake lever travel and ensure the rear brakes lock firmly without dragging when released.
DIY Parking Brake Adjustment: What You Should Know
While many car owners prefer professional service, parking brake adjustment can be a DIY task if you have mechanical skills and the right tools. However, there are a few points to consider:
-
Consult Your Owner’s Manual: Vehicle designs vary widely; your manual will have specific adjustment procedures and specs.
-
Use Proper Safety Equipment: Always use jack stands and wheel chocks to secure your vehicle.
-
Avoid Over-Tightening: Excessive tension can cause brake drag and premature wear.
-
Know Your Limits: If unsure or uncomfortable, seek professional assistance to avoid costly damage or safety issues.
Costs of Parking Brake Adjustment Services
The cost to adjust a parking brake varies depending on vehicle type, location, and whether other repairs are needed.
-
Typical Price Range: $50 to $150
-
Additional Repairs: If cables, shoes, or pads need replacement, costs will increase.
-
Labor Charges: Shops may charge hourly rates ($75 to $120+), but the adjustment itself usually takes less than an hour.
Getting regular parking brake maintenance is affordable and prevents expensive repairs or accidents.
Common Problems Related to Parking Brake Cables
Often, the root cause of poor parking brake performance is the cable system:
-
Cable Stretching: Over time, the steel cables can stretch, leading to excessive lever travel.
-
Cable Corrosion: Rust and corrosion can cause the cable to seize or snap.
-
Cable Fraying: Worn cables may fray and eventually break.
-
Frozen or Stuck Cable: Especially in cold climates, cables can freeze in place.
If cables are damaged, replacement during adjustment service is critical.
Signs You Need a Parking Brake Cable Replacement
If adjustment doesn’t improve parking brake function or if cables show visible damage, replacement is necessary. Symptoms include:
-
Parking brake lever feels loose or unusually easy to pull.
-
The parking brake won’t hold the vehicle securely.
-
Visible rust, corrosion, or broken strands on cables.
-
Uneven brake application or dragging brakes.
Benefits of Properly Adjusted Parking Brakes
Keeping your parking brake properly adjusted provides several key benefits:
-
Enhanced Safety: Prevents vehicle rollaway accidents.
-
Improved Vehicle Control: Reliable emergency braking when needed.
-
Even Brake Wear: Reduces uneven brake wear, extending component life.
-
Peace of Mind: Confidence that your car stays put on hills or slopes.
Parking Brake Maintenance Tips
To prolong the life and effectiveness of your parking brake system, follow these tips:
-
Use the parking brake regularly, even on flat surfaces, to keep components moving and cables from sticking.
-
Avoid resting your foot on the parking brake lever while driving, which can partially engage the brake and cause wear.
-
Have the parking brake inspected during regular vehicle servicing.
-
Clean and lubricate parking brake cables if accessible.
-
Replace worn or damaged components promptly.
The Role of Technology: Electronic Parking Brakes
Many modern vehicles now feature electronic parking brakes (EPB), which replace the mechanical cable with an electronically controlled actuator. These systems self-adjust automatically, reducing the need for manual adjustments.
However, electronic parking brakes require different diagnostic and maintenance procedures performed by trained technicians using specialized equipment.
Summary
Parking brake adjustment services are a vital part of vehicle maintenance that ensures your parking brake performs reliably and safely. Regular inspections, timely adjustments, and prompt repairs keep your vehicle secure when parked and provide peace of mind during emergency situations.
Whether you drive a car with traditional mechanical parking brakes or a modern electronic system, understanding how your parking brake works and recognizing signs of malfunction can help you avoid safety risks and costly repairs.
When in doubt, trust professional mechanics for parking brake adjustment services to ensure the job is done right.
